Pump Stations

Features:

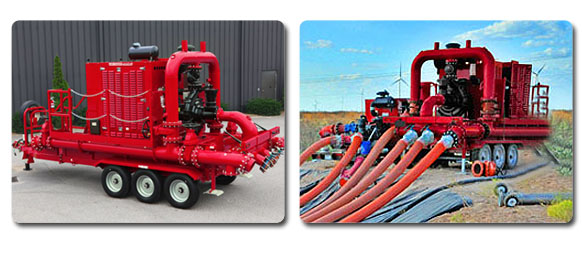

HM Flex Series-Pump Station Comes with a Cornell 8H Self-Priming Pump and it pumps from 1500 up to 4200 gallons per minute (35-100bpm). Two 8,000 lbs. axles fitted with electric brakes with 300 gallon DOT rated fuel tank and four 2” air release valves. Consist of lifting bale for easy loading/unloading of the unit with 4 Leveling jacks and five 8” suction ports to avoid cavitation.

Suction ports are fitted with butterfly valves and gate valves are used to control discharge and main flow feeds. Optional manual crane that can be fitted on the front or back of the Pump Station to assist in lifting 10” hose fittings. Twin discharge ports to allow for 100bpm flow. Plumbing is designed for use as either a source or booster pump and for easy blowout with either a ball or bullet.

Safety Features:

Our pumping station is a low pressure audio and visual warning system with fire extinguishers and emergency shut offs on each side. Rugged LED lights to combat rough terrain and poor visibility and pressure gauges protected by steel collars. Four vibrant night lights for after hours work and maintenance. Engine control panel equipped with protection gauge.

Efficiency Advantage:

The design of the pump allows the operator to launch a ball back through the system and return all unused water to source for future use. This is done without having to disconnect any hoses avoiding spillage of any “produced” water.
