HM Flex Bladder Tanks Fluid Transfer System

Features:

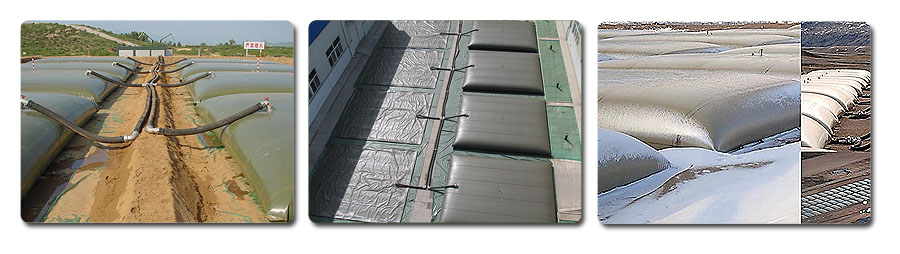

Consists of multiple bladders, transportation hoses and related accessories. Fully loaded height 23-66 inches in round or rectangular shape with the valves for couplings connection, and one sided vent valve protects liquid against air. Each bladder can have single or multiple connections through each other or to pump stations with the suction hoses. The truck with fluid containment tank can suction and discharge of the fluids into and out from multiple bladders.

bladder

Type of applications:

Widely used for liquid containment, temporary firefighting water containment and transfer system or the urban water supply and drainage system.

Technical Specifications:

Capacity Empty Loading Weight Fully-loaded  Height Expansion dimension (L×W) Folded dimension (L×W×H )
Gal
Lbs
Inch
Feet
Inch
250 31 16 7.2×6.2 27.6×25.6×7.9
500 66 20 9.2×7.2 37.4×27.6×11.8
750 77 22 10.5×8.2 37.4×31.5×15.7
1250 110 24 12.5×10.5 39.4×31.5×29.5
2500 187 31 14.4×14.4 35.4×29.5×15.7
4000 198 35 17.7×14.4 37.4×29.5×17.7
5000 254 39 20.8×14.4 38.6×31.5×17.7
6000 276 43 22.9×15.4 41.3×31.5×15.7
8000 282 43 23.2×18.7 43.3×35.4×16.5
15000 485 43 27.9×22.9 59.1×35.4×25.6
20000 728 47 38.1×22.9 63.0×43.3×27.6
25000 860 47 36.1×31.1 59.1×43.30×27.6
50000 1389 63 54.5×31.2 78.7×43.3×35.4
75000 1764 65 54.1×39.37 78.7×43.3×39.4
100000 2315 67 56.4×51.5 167.3×43.3×27.6
150000 2976 67 68.9×51.8 167.3×47.2×39.4
200000 3792 67 73.8×73.8 224.4×82.7×19.7
Operating Temperature Range: -58 °F ~ 176 °F.
Above specifications are subject to change without notification.
Custom made tank for different capacity, dimension and weight and color upon request.
