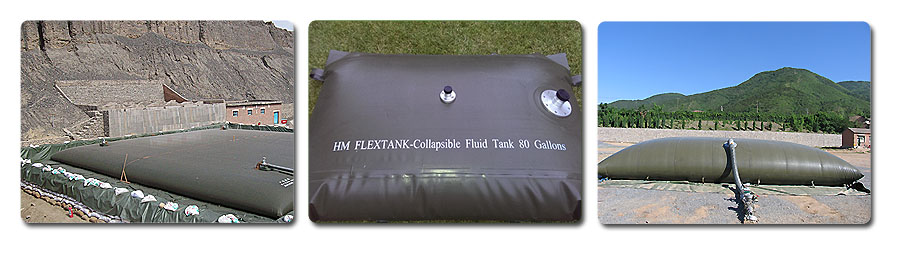

HM Flex TPU Bladder

Rectangle or square shaped bladder available upon request. Portable & Foldable and provides mobility. Made of Poly-Urethane.

pillow

Widely applied for temporary and long-term storage of drinking water, gasoline, diesel, jet fuel, crude oil, industrial grease, etc..

For more information, email to sales@highermaterials.com

Technical specifications:

Capacity	Empty Loading Weight	Fully-loaded Height	Expansion dimension (L×W)	Folded dimension (L×W×H )
Gal	Lbs	Inch	Feet	Inch
250	31	16	7.2×6.2	27.6×25.6×7.9
500	66	20	9.2×7.2	37.4×27.6×11.8
750	77	22	10.5×8.2	37.4×31.5×15.7
1250	110	24	12.5×10.5	39.4×31.5×29.5
2500	187	31	14.4×14.4	35.4×29.5×15.7
4000	198	35	17.7×14.4	37.4×29.5×17.7
5000	254	39	20.8×14.4	38.6×31.5×17.7
6000	276	43	22.9×15.4	41.3×31.5×15.7
8000	282	43	23.2×18.7	43.3×35.4×16.5
15000	485	43	27.9×22.9	59.1×35.4×25.6
20000	728	47	38.1×22.9	63.0×43.3×27.6
25000	860	47	36.1×31.1	59.1×43.30×27.6
50000	1389	63	54.5×31.2	78.7×43.3×35.4
75000	1764	65	54.1×39.37	78.7×43.3×39.4
100000	2315	67	56.4×51.5	167.3×43.3×27.6
150000	2976	67	68.9×51.8	167.3×47.2×39.4
200000	3792	67	73.8×73.8	224.4×82.7×19.7
Operating Temperature Range: -58 °F ~ 176 °F.
Above specifications are subject to change without notification.
Tailor made tank for different capacity, dimension and weight and color upon request.
