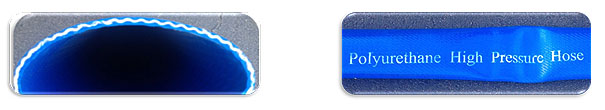

HM Flex High Pressure TPU (HP-TPU) Hose
Features:
HM Flex HP-TPU HOSE is specially designed for the crude oil transfer and the emergency water drainage and dewatering at the mining site. Super-high wear resistance, long service life can be used at narrow and complicated terrains under extreme weather conditions as well as earthquake rescue and disaster relief operations, wildfire fighting.
Currently, worldwide oil & petroleum companies have been using 6″ high pressure polyurethane hose for crude oil transfer overseas. Our standard HP-TPU hose 650psi WP (working pressure) 1300psi BP (burst pressure).
Technical specifications:
| Product Code | Diameter | Wall Thickness | Weight | Working Pressure | Bursting Pressure | Adhesion Strength |
| CODE | INCH | INCH | LBS/FT | PSI | PSI | LBS/INCH |
| HMTPU4HP | 4″ | 0.17 | 1 | 650 | 1300 | 17 |
| HMTPU6HP | 6″ | 0.26 | 2.2 | 650 | 1300 | 17 |
| Operating Temperature Range: -58 °F ~ 176 °F. | ||||||
| Above specifications are subject to change without notification. | ||||||
| Different sizes, pressure rating, and color upon request. | ||||||
